The AOT-HP-8000 7” Hay Pulley / Wireline Sheave is designed to reduce the amount of side pull force to the lubricator string. While in route from the stuffing box to the wireline unit, the Hay Pulley / Wireline Sheave alters the direction of the wireline from a perpendicular position to a horizontal position. The Hay Pulley is engineered for easy line wiper attachment.

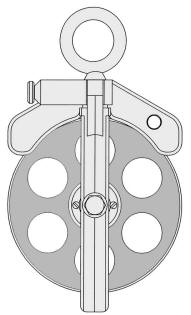

7” (.092”) HAY PULLEY / WIRELINE SHEAVE



Description

Part Number


Hay Pulley - Wireline Sheave (Complete Assembly) AOT-WS-8000
Latch Block AOT-WS-0010
Eye Bolt AOT-WS-0030
Nut AOT-WS-0029
Fork AOT-WS-0011
Hinge Bolt AOT-WS-0007
Hinge Nut AOT-WS-0008
Latch Spring AOT-WS-0009
Jam Nut AOT-WS-0004
Sheave Bolt AOT-WS-0003
Lock Pin Nut AOT-WS-0200
Lock Pin AOT-WS-0201
Wheel (with bearings) AOT-WS-0002
Wheel (only) AOT-WS-0003
Bearing (2) AOT-WS-0000
Screw (4) AOT-WS-0001
